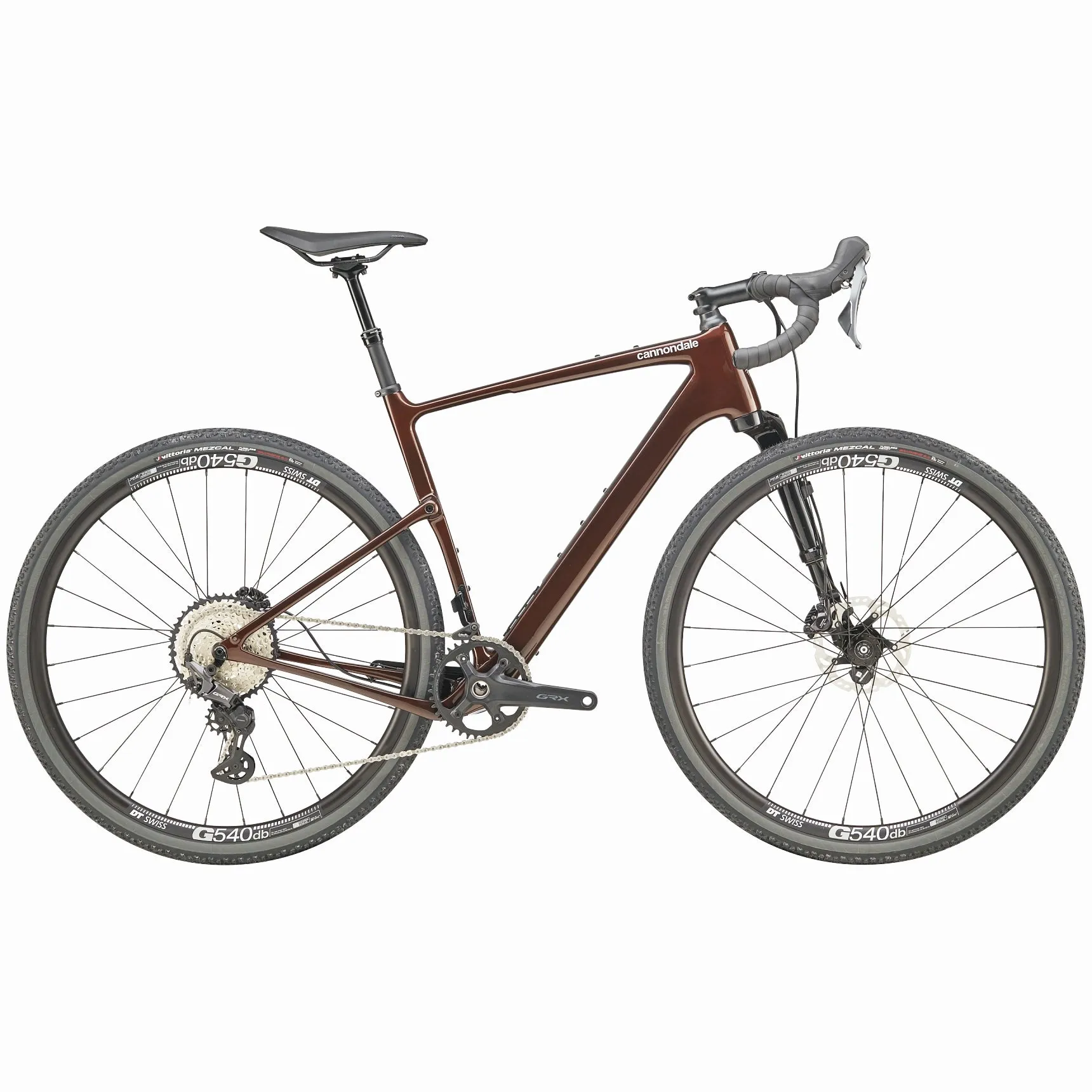

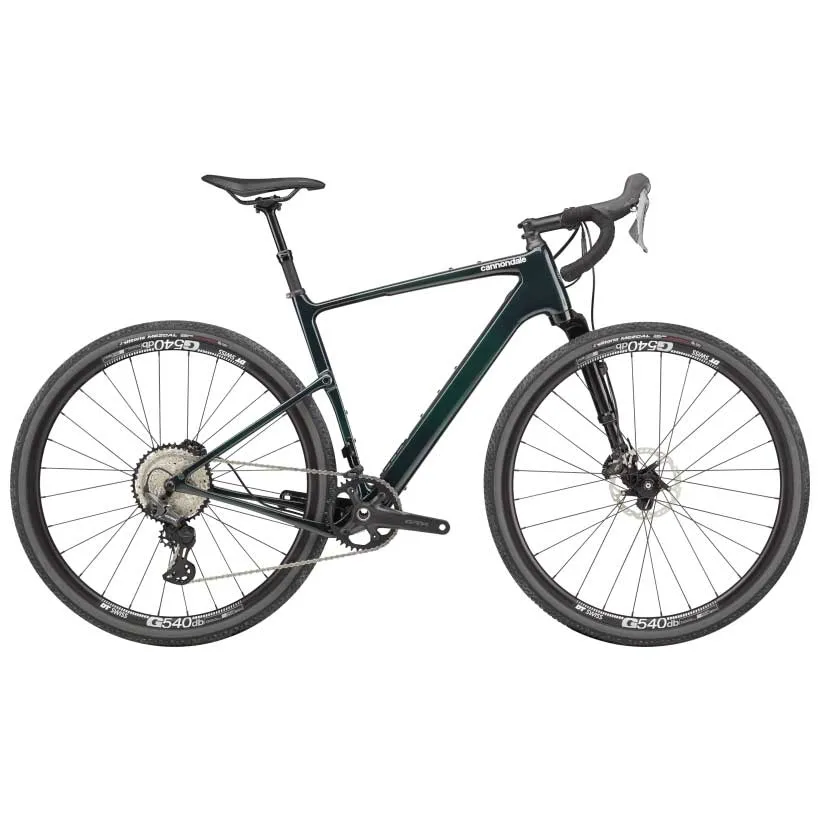

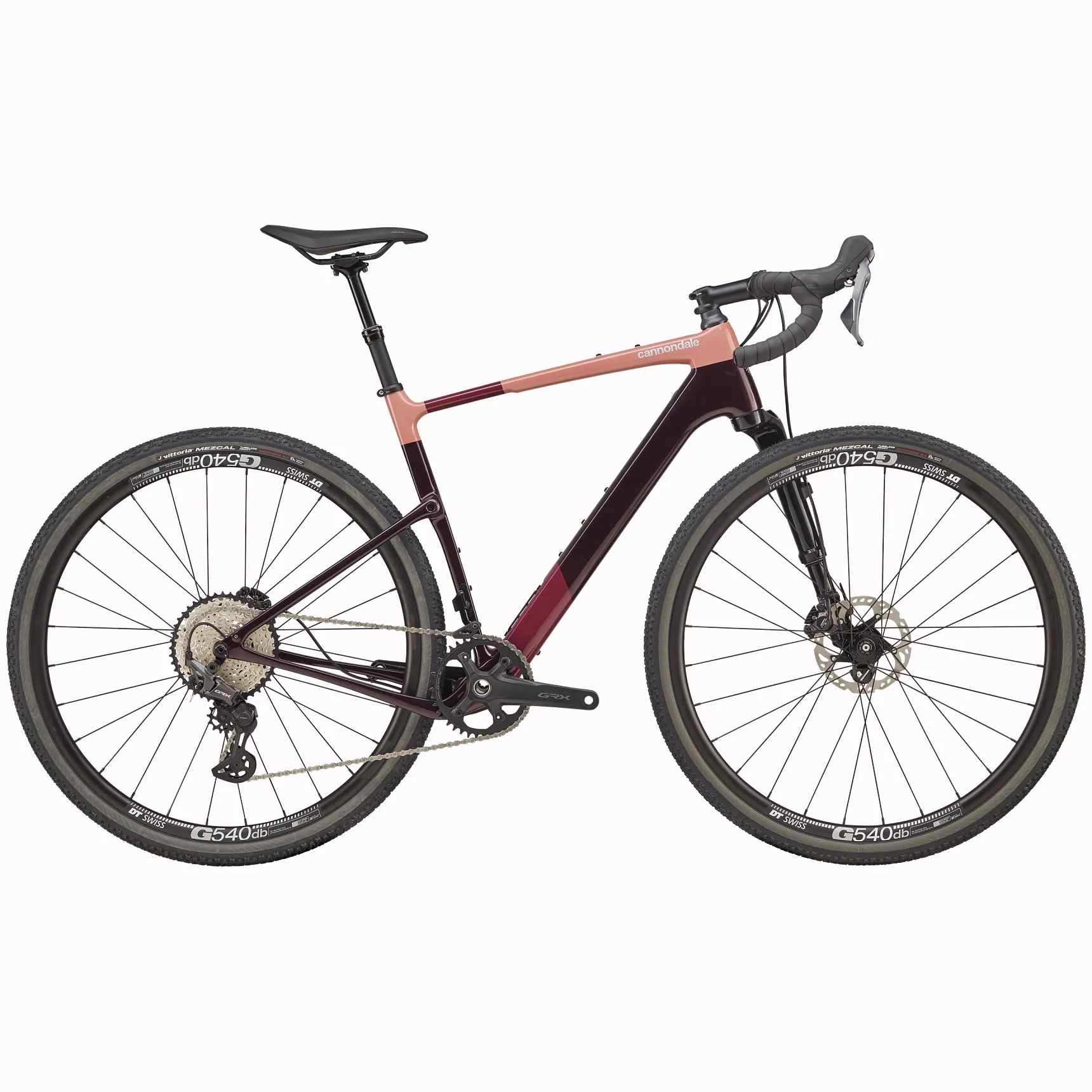

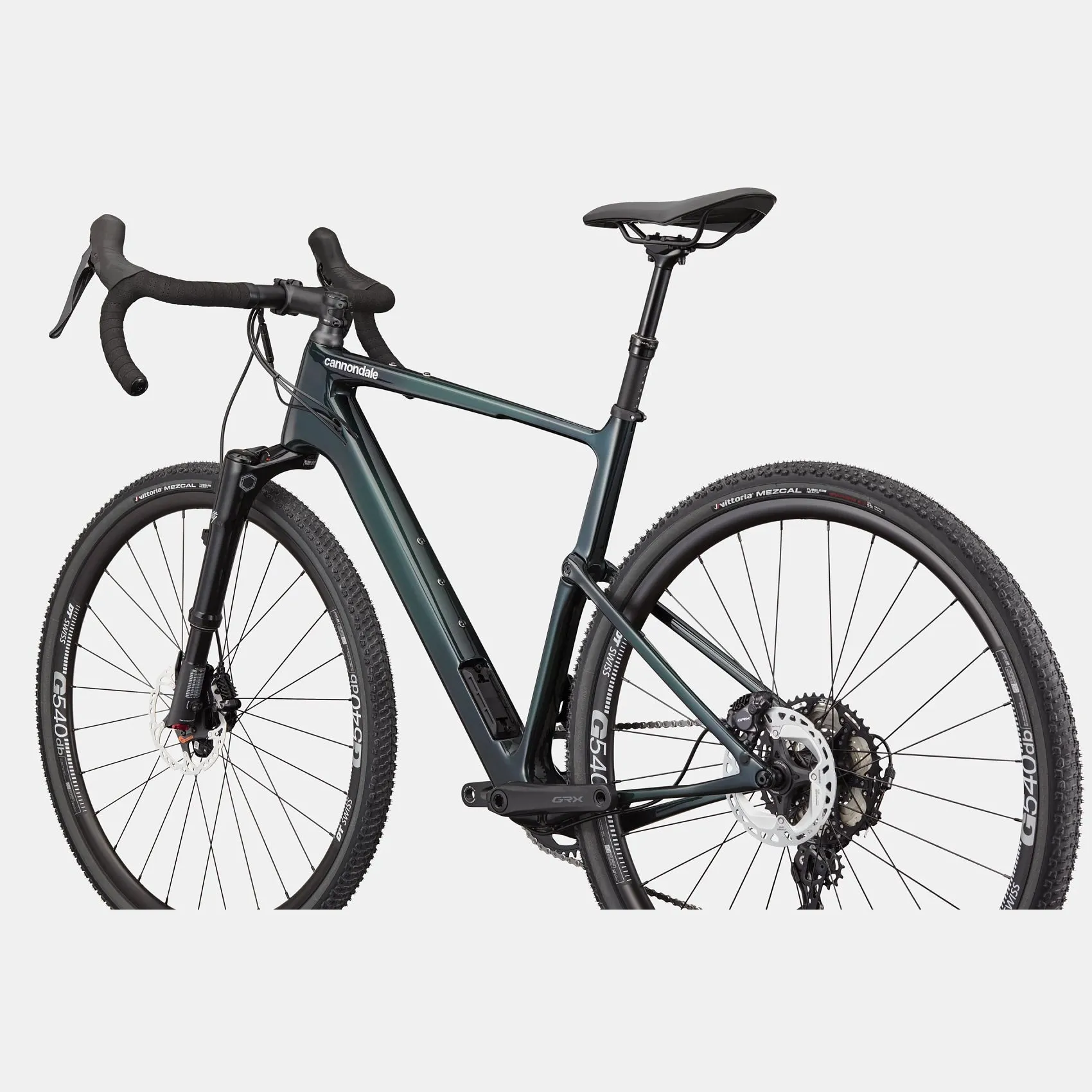

Nothing is impassable
The best dual-suspension gravel bike for rugged dirt roads and singletrack trails. With the Kingpin system and Lefty fork, nothing is off-limits.
Kingpin Suspension
Delivering a smooth ride without the added weight and complexity of a shock and links, Kingpin is our answer for the most demanding gravel riders. Whether you need more comfort to go long, more traction to push beyond or more give to take on the tech - Kingpin is the maintenance-free, lightweight answer to your prayers.
Lefty Goes Big
The smoothest, most-precise handling gravel fork in the world. With 30mm of bob-free travel and room for 700x45mm tires, Lefty Oliver lives to push the boundaries with comfort and control.
Load Up. Roll Out.
With plentiful gear and water bottle mounts on the frame and fork, Topstone Carbon is ready to load up and go long.
Corner like a Boss
Rail through the rough and come out smiling. Led by our OutFront steering geometry, the Topstone Carbon offers up handling that's serenely stable in the chop, and light & nimble everywhere else.
Where it thrives
Gravel and Dirt Roads, Rough Pavement, Trails
What it's built for
Gravel riding, back road exploring, bike packing and off-road adventures
Highlights
- Lightweight Topstone Carbon frame with Kingpin suspension / Lefty Oliver gravel suspension fork, 30mm travel
- Shimano GRX 800/600 12-speed gravel group / DownLow dropper post
- DT Swiss G540 tubeless ready rims / Vittoria Mezcal 700x44c tires
SPECIFICATIONS
Frameset
Frame - Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
Fork - Lefty Oliver, 30mm travel, lockout, Chamber Damper w/ All-Over tune, ISO High-Ride air spring, tapered steerer, 700c, 55mm offset
Headset - Integrated, Carbon, 1-1/8" - 1-1/2"
Drivetrain
Rear Derailleur - Shimano GRX 822, Shadow RD
Shifters - Shimano GRX 820, 12-speed, w/ dropper actuator
Chain - Shimano HG M7100, 12-speed
Crank - Shimano GRX 610, 40T
Rear Cogs - Shimano SLX M7100, 10-45, 12-speed
Bottom Bracket - Shimano BSA 68
Brakes
Brake Caliper - Shimano GRX 820 hydraulic disc, 160/160mm MT800/RT76 rotors
Brake Levers - Shimano GRX 820 hydraulic disc
Wheels
Rims - DT Swiss G 540, 700c, 28h, 24mm inner width, tubeless ready
Spokes - Stainless Steel, 14g
Tire Size - 44
Wheel Size - 700
Hubs - (F) Lefty 50, 6-Bolt / (R) Shimano TC500, Centerlock Disc, 12x142mm
Tires - Vittoria Mezcal, 700x44c, tubeless ready
Components

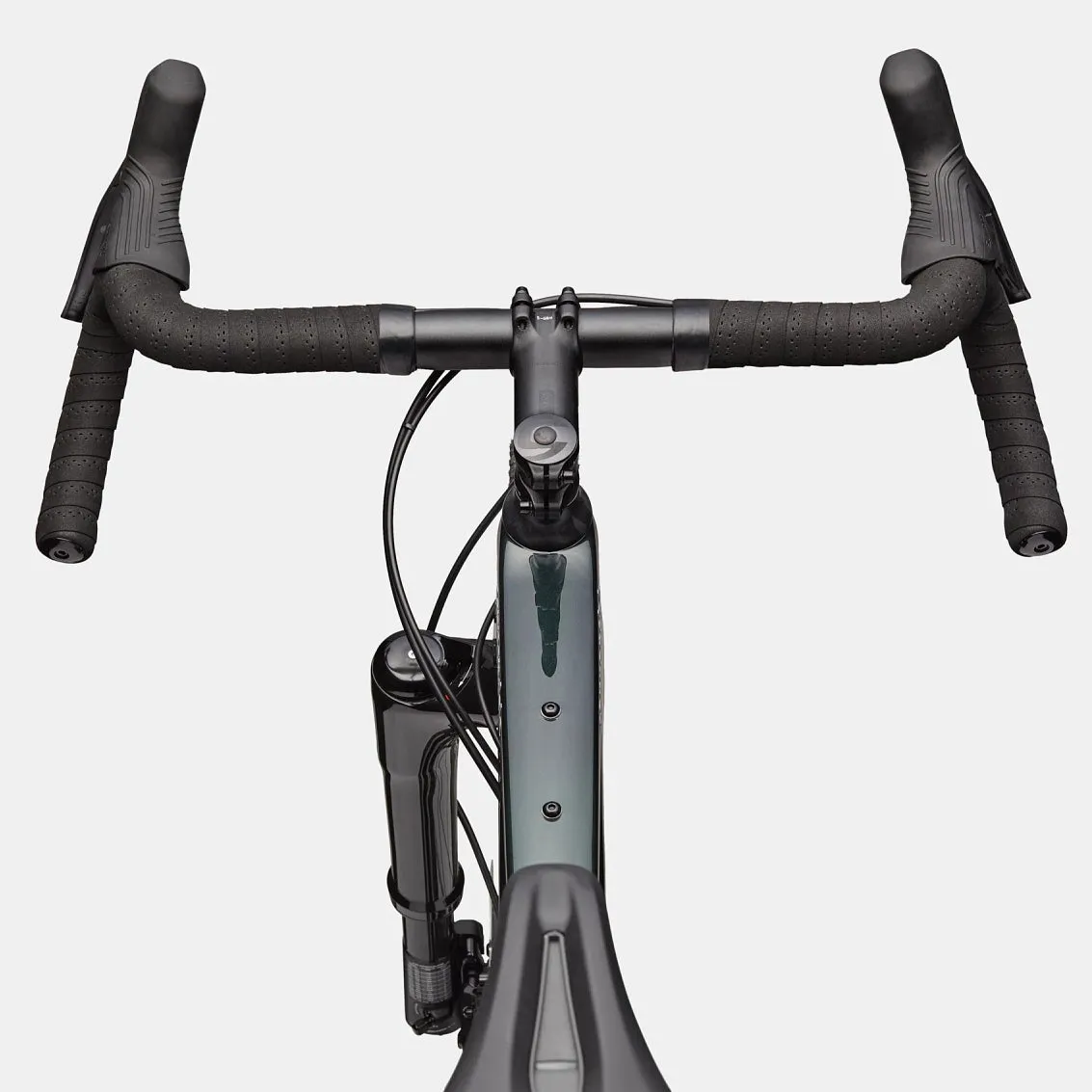

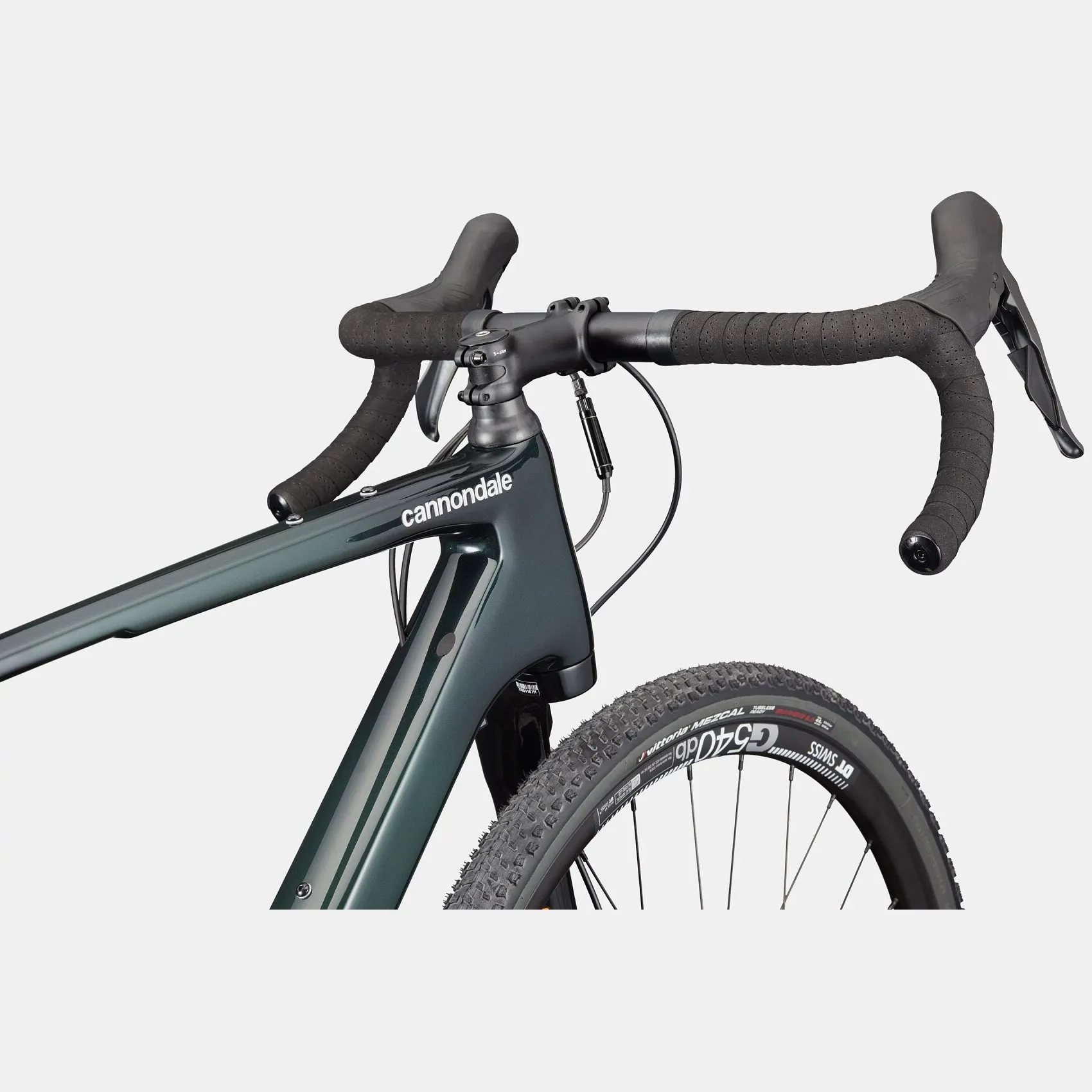

Handlebar - Cannondale 2 ShortDrop, 7050 alloy, 12 deg flare drop | Cannondale Bar Tape, 3.5mm
Stem - Cannondale 2, 6061 Alloy, 31.8, 7°
Saddle - Fizik Terra Argo X5, S-alloy rails
Seatpost - Cannondale DownLow Dropper Post, 27.2, 60/80/100mm travel, shifter-integrated lever
Connectivity
Wheel Sensor - Cannondale Wheel Sensor
Extra - StrapRack tool/stuff holder
